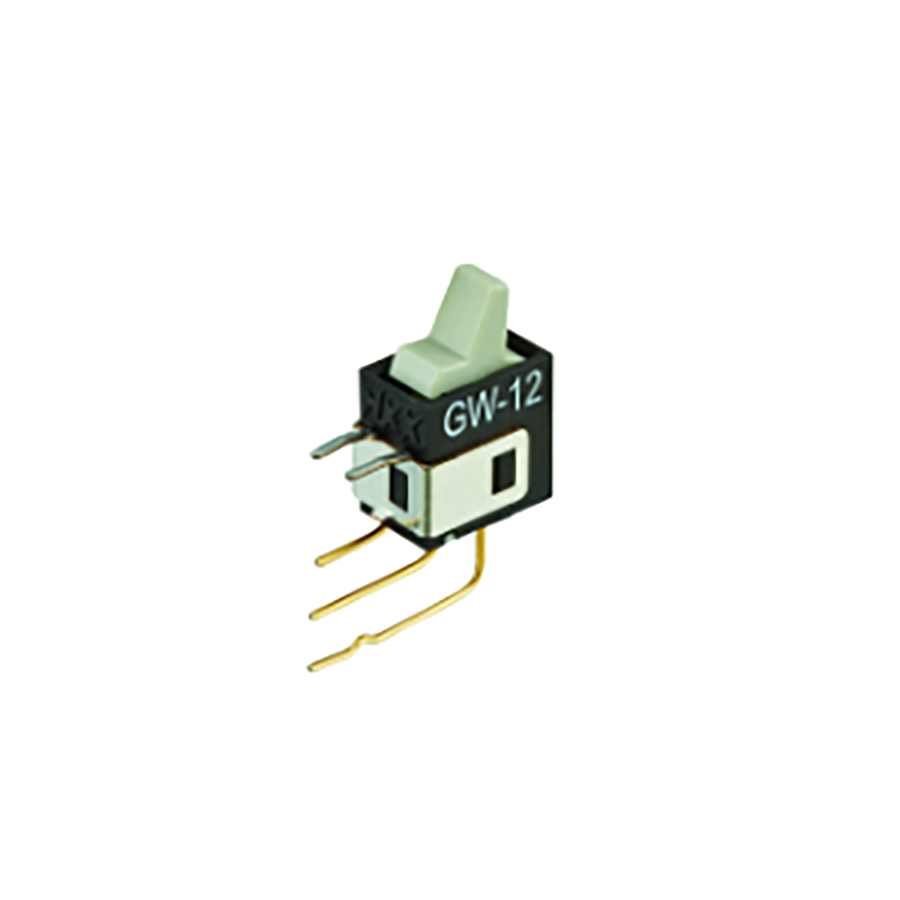

GW12LHV
Manufacturer:
NKK Switches
Mfr.Part #:
GW12LHV
Datasheet:
Description:
Rocker Switches Through Hole ON - ON Non-Illuminated Paddle Current Rating:400 mA
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 28 V |
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Voltage Rating (AC) | 28 V |
| Power Rating | 400 mW |
| Packaging | Bulk |
| Lead Free | Contains Lead |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Current Rating | 400 mA |
| Orientation | Vertical |
| Color | Grey |
| Throw Configuration | SPDT |
| Switch Function | ON - ON |
| Illumination Type | Non-Illuminated |
| Electrical Life | 50 kcycles |
| Mechanical Life | 50 kcycles |
| Contact Current Rating | 100 mA |
| Actuator Type | Paddle |
| Termination Style | PC Pin |
| Schedule B | 8536509065 |
Stock: 1
Distributors
pcbx
pcbxUnit Price$2.67850
Ext.Price$2.67850
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.67850 | $2.67850 |
| 10 | $2.35277 | $23.52770 |
| 25 | $2.14673 | $53.66825 |
| 50 | $2.13730 | $106.86500 |
| 100 | $2.12792 | $212.79200 |
| 300 | $2.01867 | $605.60100 |
| 500 | $1.91504 | $957.52000 |
| 1000 | $1.79620 | $1796.20000 |
